Products - OEM

























NovAtel GNSS Boards and Enclosures

Novatel's OEM GNSS receiver platform offers multi-constellation, multi-frequency tracking and features flexibility, low power consumption, field upgradeable software and comprehensive message suites for ease of configuration and data logging. ALIGN firmware combines two or more receivers to generate precise positioning and heading for dynamic applications such as marine or aviation. ALIGN uses GPS, GLONASS and SBAS to provide high solution accuracy and availability, even in difficult environments. Accuracy from synchronized solutions is provided with output rates up to 20 Hz on our OEMV and OEM6 receiver platforms.

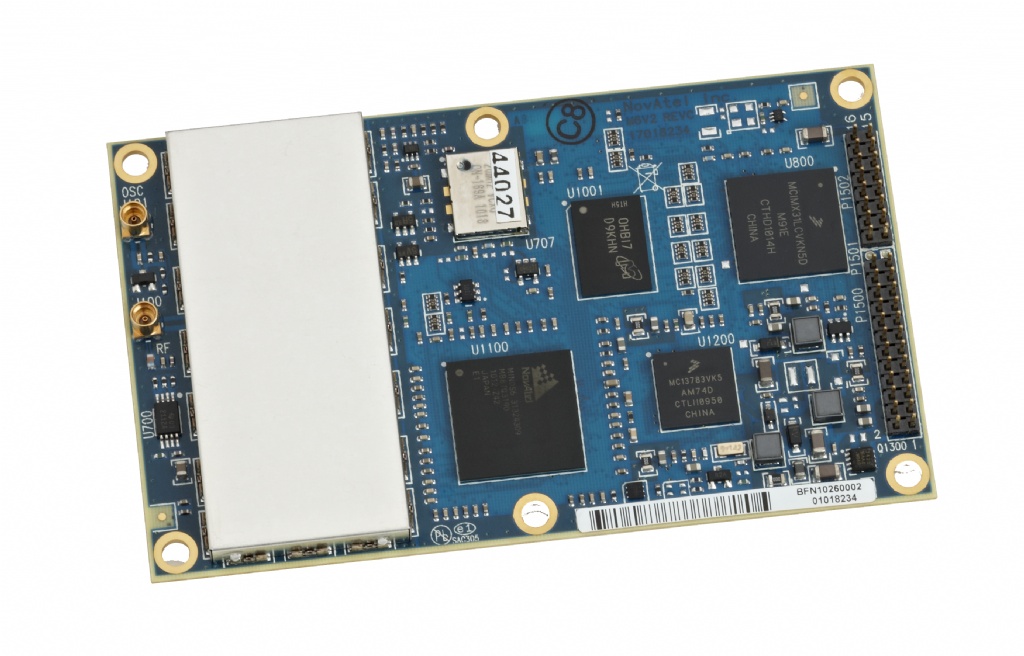

OEM Receiver Boards

Card level GNSS receivers in multiple hardware and software configurations, including our next generation OEM6 GNSS platform.Next generation GNSS receiver technology on our industry standard hardware platform. Scalable positioning options and low latency positioning with high data rates make OEM6 receivers ideal for high dynamics applications. Comprehensive support for all current and upcoming GPS, GLONASS, Galileo and BeiDou satellite signals. Field upgradeable to maximize satellite availability and optimize GNSS signal usage. OEM Boards Datasheet

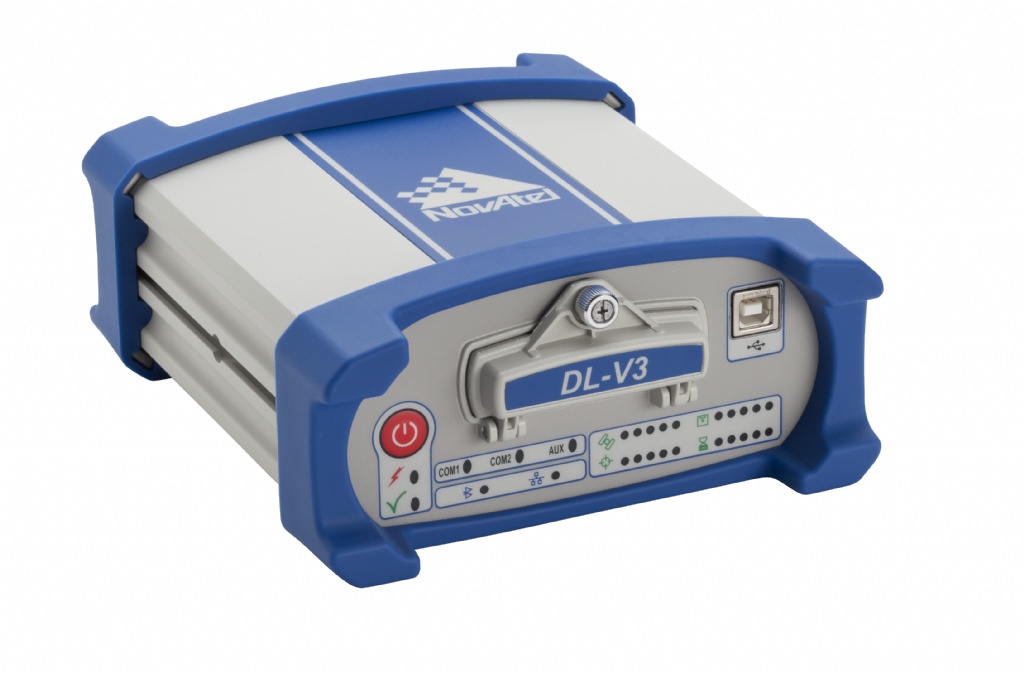

DL-V3

NovAtel's DL-V3 is a general purpose high performance GNSS receiver particularly suited for base station and rover applications. The DL-V3 incorporates NovAtel's OEMV-3 receiver board housed in a rugged aluminum enclosure. The DL-V3 provides flexible connectivity options through Serial, USB, Ethernet and Bluetooth interfaces. Enclosures Datasheet

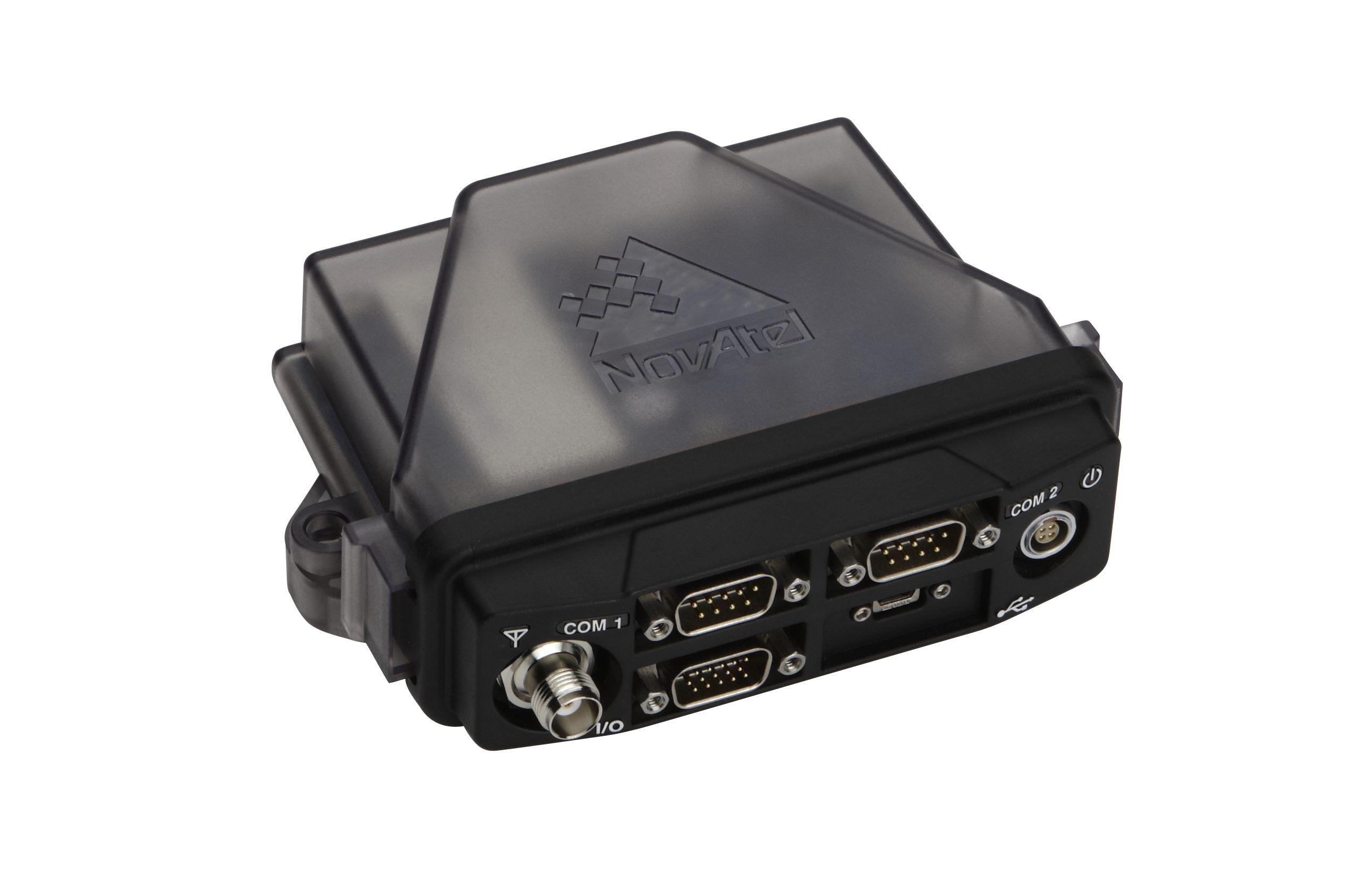

FLEX6

The compact FlexPak6 receiver houses our OEM628™ triple-frequency plus L-Band GNSS receiver board. It tracks all current and future GNSS constellations, with a highly configurable interface to ensure positioning and integration needs are met now and into the future. FLEXPak Enclosure Datasheet

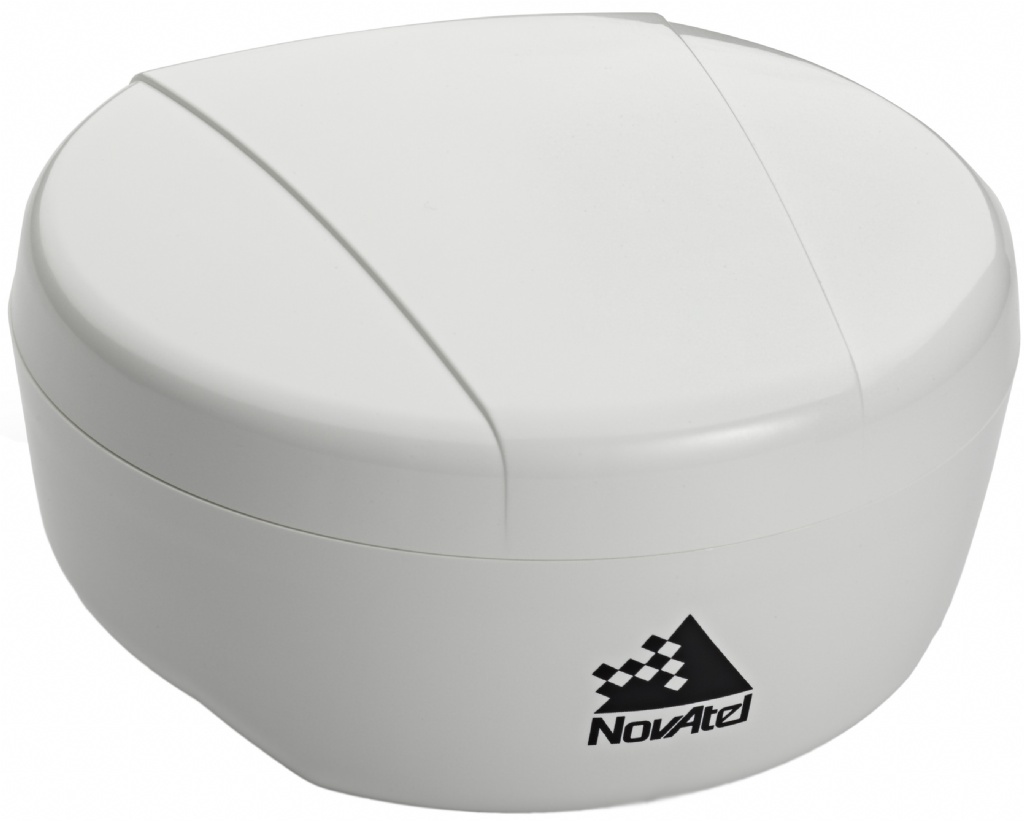

Smart Antenna

NovAtel SMART antennas are high precision products that include a board level GNSS receiver and GNSS antenna integrated into one compact enclosure. Smart Antenna Datasheet
















NovAtel SPAN GNSS Inertial Systems

Combining GNSS receiver technology with Inertial Navigation Systems (INS) provides a superior positioning solution with 3D position, attitude (roll, pitch, yaw) and velocity. SPAN technology tightly couples NovAtel’s GNSS receiver technology with an Inertial Measurement Unit (IMU). We market a variety of IMUs from leading IMU manufacturers to provide our customers the opportunity to select an IMU that delivers the accuracy or price point their application requires. SPAN Brochure

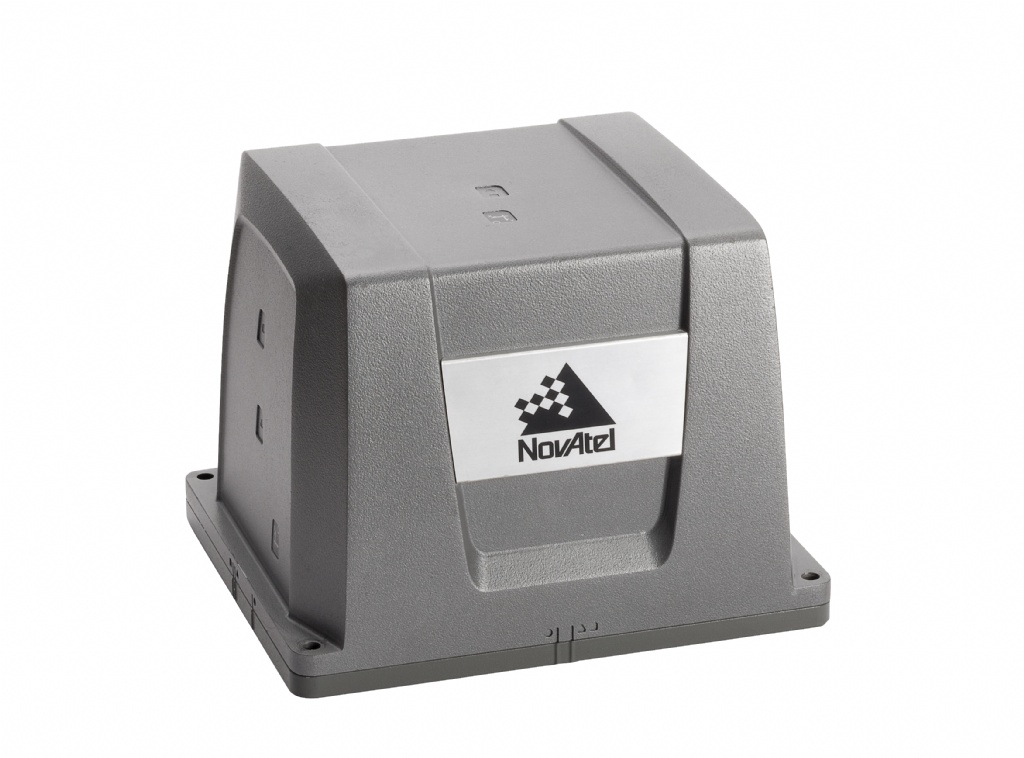

UIMU-H58/62

The UIMU-H62/H58 contains Honeywell’s HG1700, a tactical grade IMU containing Ring Laser Gyros (RLG) and Servo accelerometers. The UIMU-HG handles the power requirements of the IMU from a 12-28 VDC power input and provides the IMU data to a SPAN enabled GNSS/INS receiver such as the ProPak-V3 or SPAN-SE using a custom NovAtel interface. The HG1700 is International Traffic in Arms Regulations (ITAR) controlled and requires export approval for customers outside the United States. UIMU-HG Datasheet

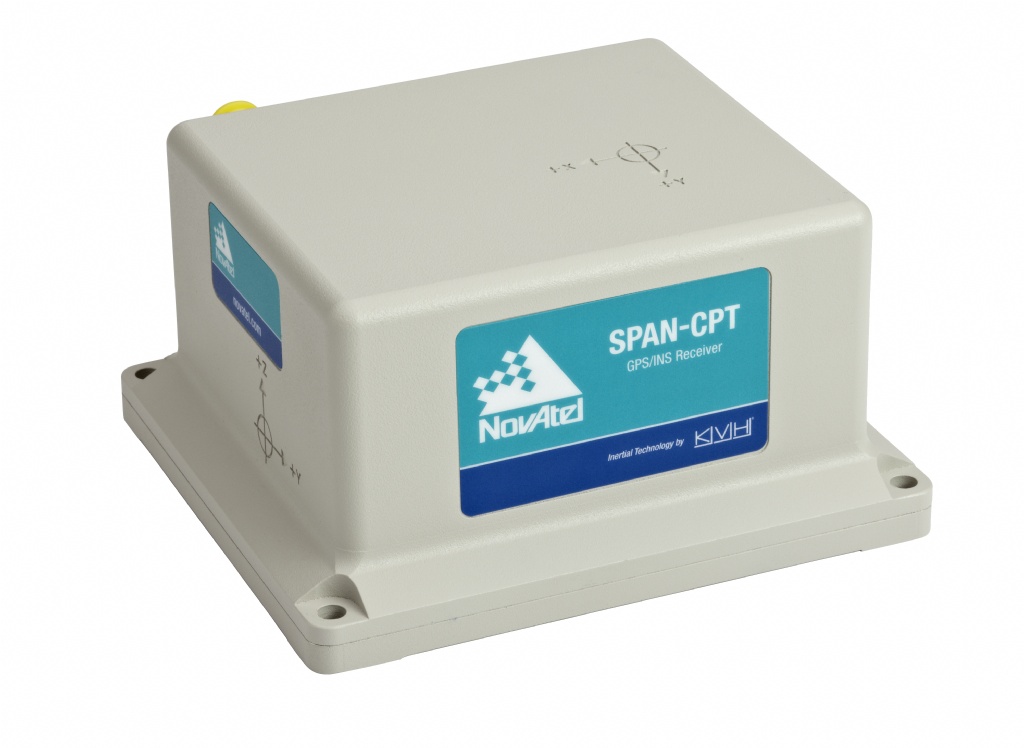

SPAN-CPT

Our SPAN-CPT GPS/INS receiver integrates NovAtel’s OEMV®; GPS receiver technology with Fiber Optic Gyro (FOG) and Micro Electrical Mechanical System (MEMS) accelerometer inertial components from KVH Industries in a single compact unit. The tight coupling of the GPS and INS technologies optimizes the raw GPS and Inertial Measurement Unit (IMU) data, delivering a superior position, velocity and attitude solution. Delivers up to one centimetre accuracy. SPAN-CPT Datasheet

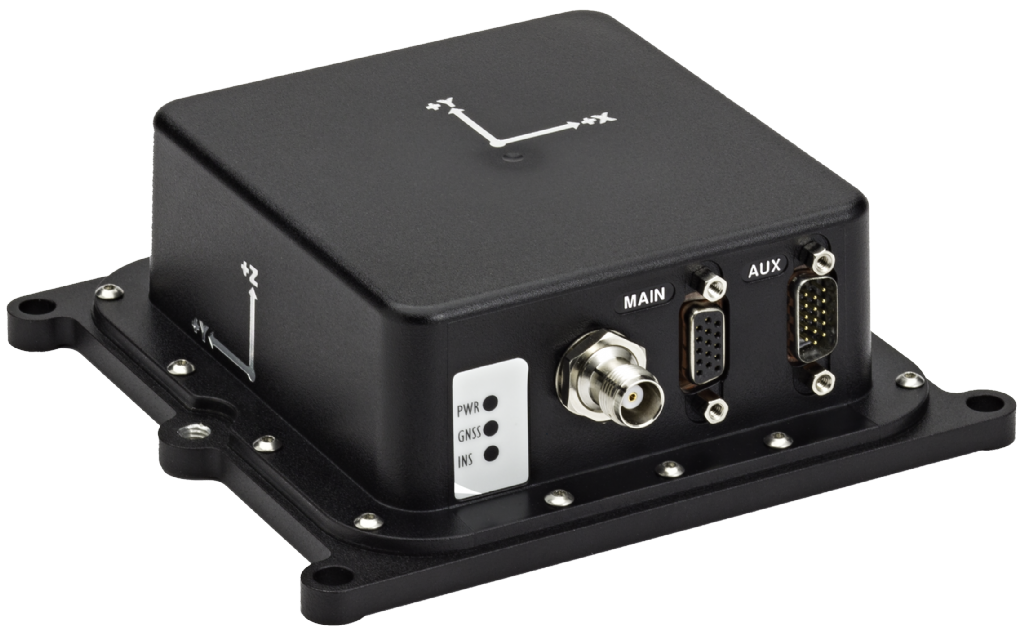

SPAN-IGM-A1

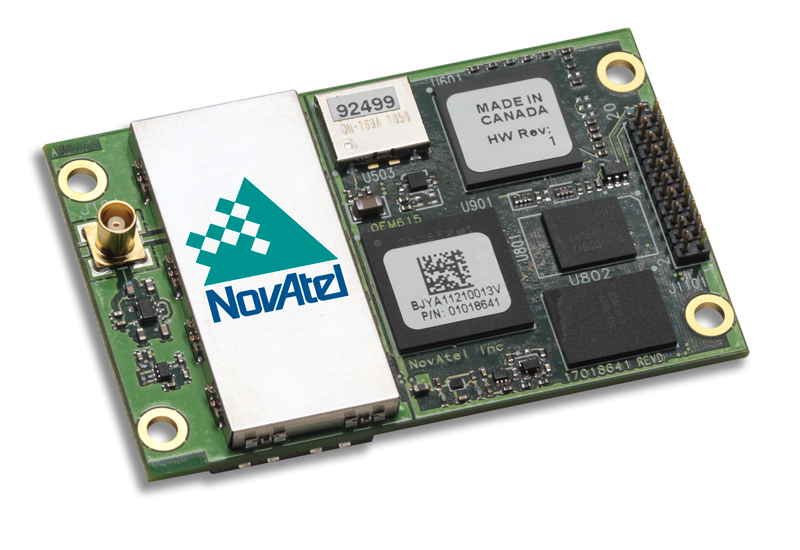

The SPAN-IGM-A1 delivers world class NovAtel® SPAN® technology in an integrated, single box solution. The SPAN-IGM-A1 offers tightly coupled GNSS inertial navigation featuring our OEM615™ receiver.The smallest and lightest GNSS + Inertial Navigation System (INS) receiver in our product portfolio, the SPAN-IGM-A1 can be configured from the factory as an integrated GNSS + INS or as a standalone IMU sensor for pairing with an existing NovAtel SPAN receiver. SPAM-IGM-A1 Datasheet
















Antennas from Novatel and Antcom

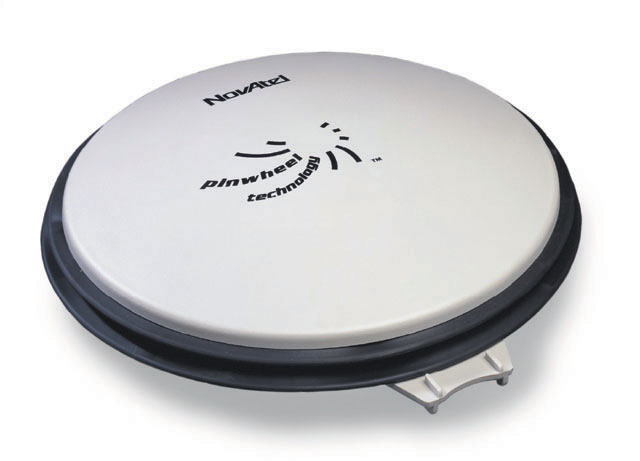

Novatel antennas combine exceptional performance with unsurpassed reliability to suit a variety of applications. From the low profile aircraft antenna to the high performance choke-ring antenna all are designed to enhance the performance of NovAtel precise positioning receivers. Antennas Guide/Datasheet

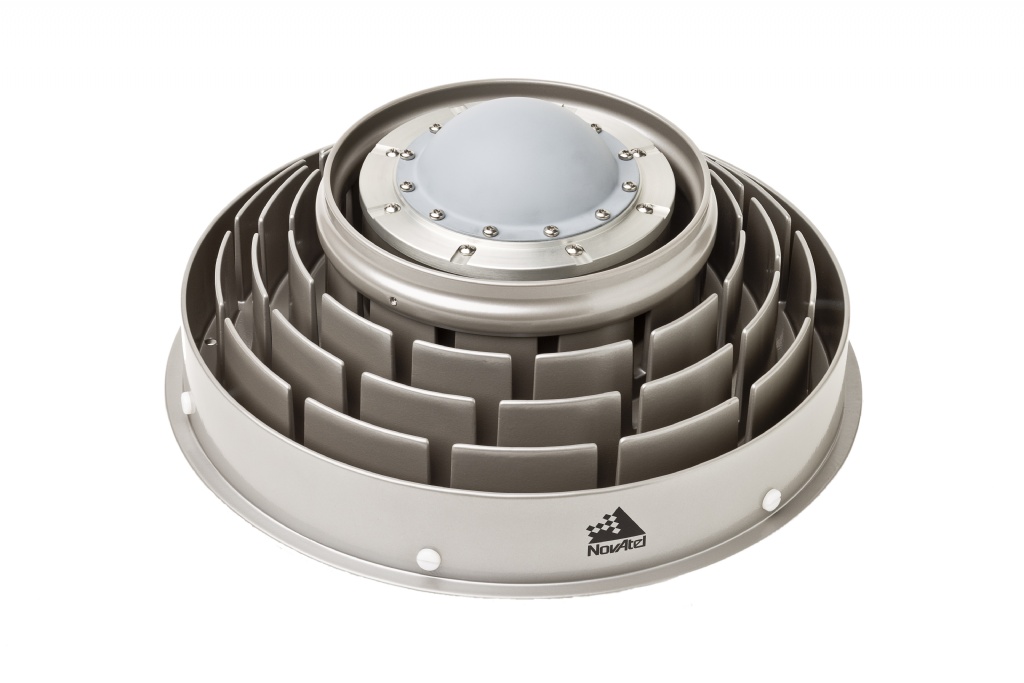

Novatel fixed reference antennas are optimized for the positioning accuracy and availability requirements of reference station applications. Each antenna contains a choke-ring to reduce the strength of undesired reflected signals (multipath) that degrades positioning accuracy. GNSS-750 Datasheet

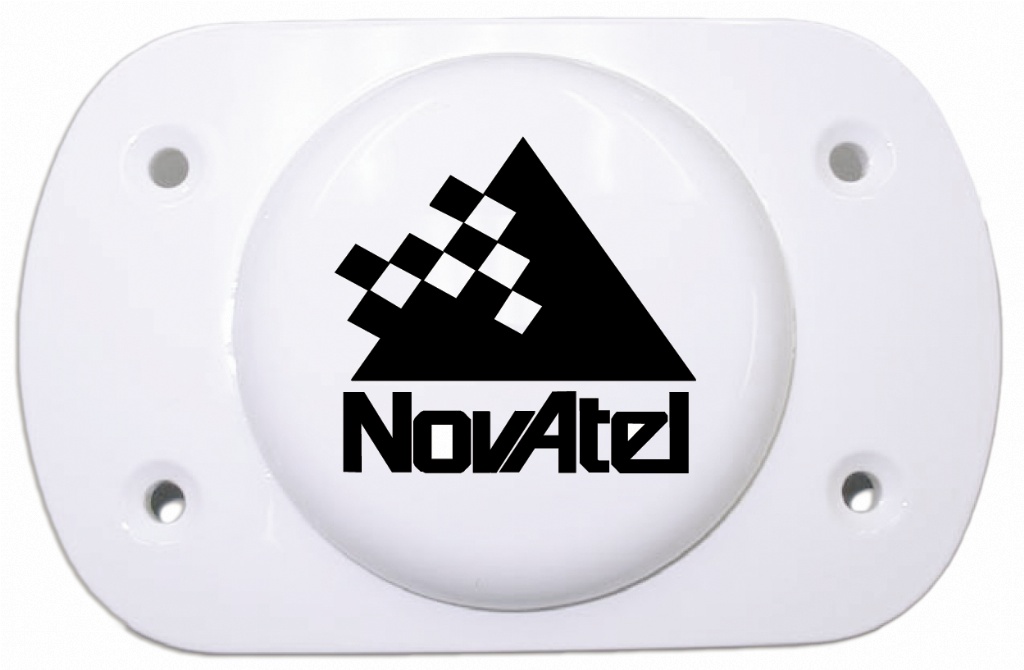

Antcom's aviation antennas are ideal for airborne and other high-dynamic applications. Their small size and low weight are ideal for UAS applications. Antcom antennas support all constellations. An air-worthy FAA certificate is available.























Ashtech OEM Boards and Sensors

Ashtech is a leading designer and developer of precision positioning technology. With the proven technology of the Z-Blade engine, our OEM GNSS products are best-in-class.

MB100

The Ashtech MB100 is the smallest form factor and comes in several configurations including L1, L1+L2, GPS, GPS+GLONASS and RTK. MB100 Datasheet



ABX Series

The ABX series of GNSS Sensors offers a variety of configurations. The ABX100 is a low-cost L1 GPS or L1 GPS+GLONASS solution for such applications as a GNSS Rover or a GNSS Base Station. The ABX800 is a higher performance sensor offered with L1L2 GPS or L1L2 GPS+GLONASS. Other options include, an internal UHF radio, Galileo and L5 tracking. If heading is required the ABX802 dual board sensor is the answer. ABX Series Datasheet

HDS800

The Ashtech HDS800 is a powerful positioning solution that delivers state-of-the-art RTK + Heading measurements in a rugged, highly integrated receiver design that uses all available GNSS signals equally, without any constellation preference, to deliver fast and stable RTK + Heading solutions. The HDS800 has an 128MB internal memory and supports data logging directly to a USB stick or hard drive. In addition, the unit has an internal battery and internal radio. All this in one housing. HDS800 Datasheet
